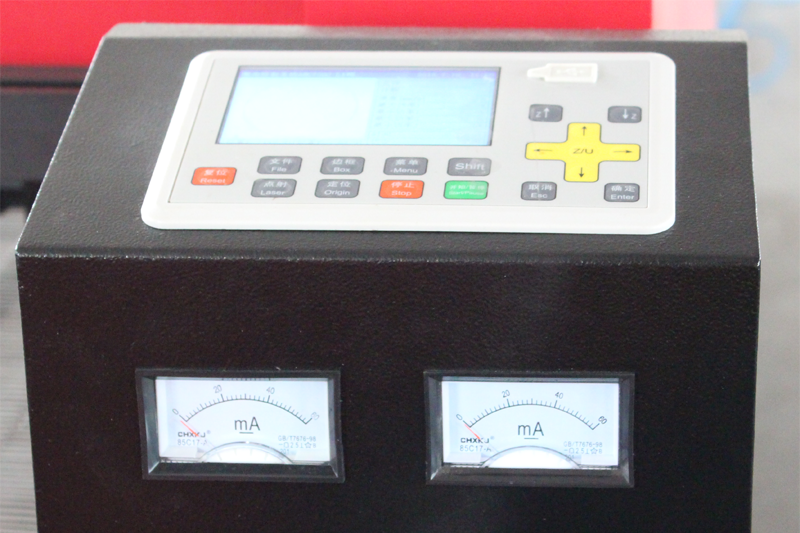

控制總成

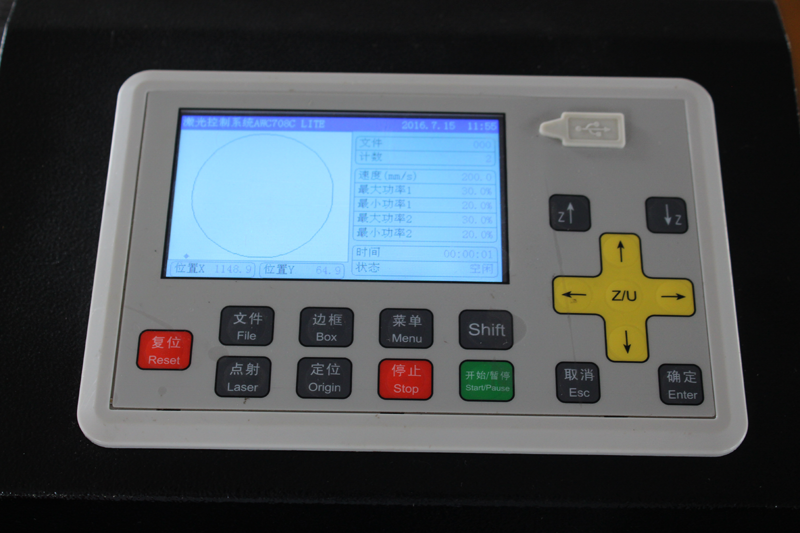

708控制面板

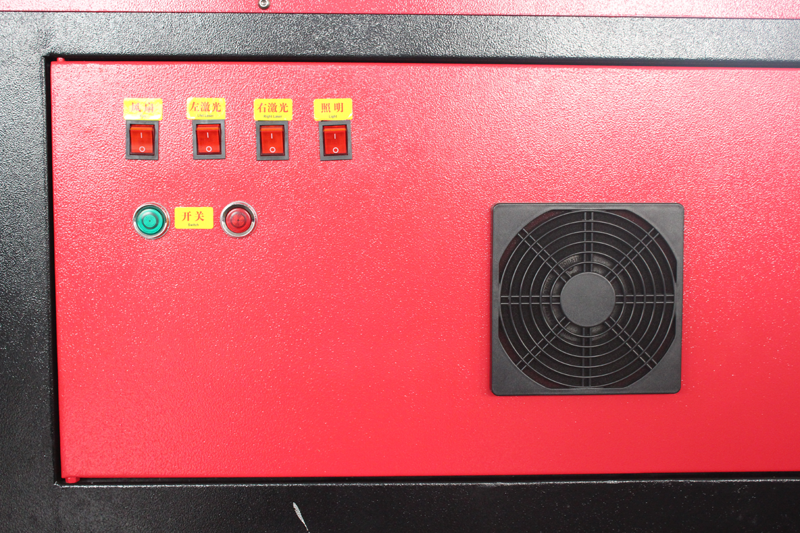

電氣控制開關

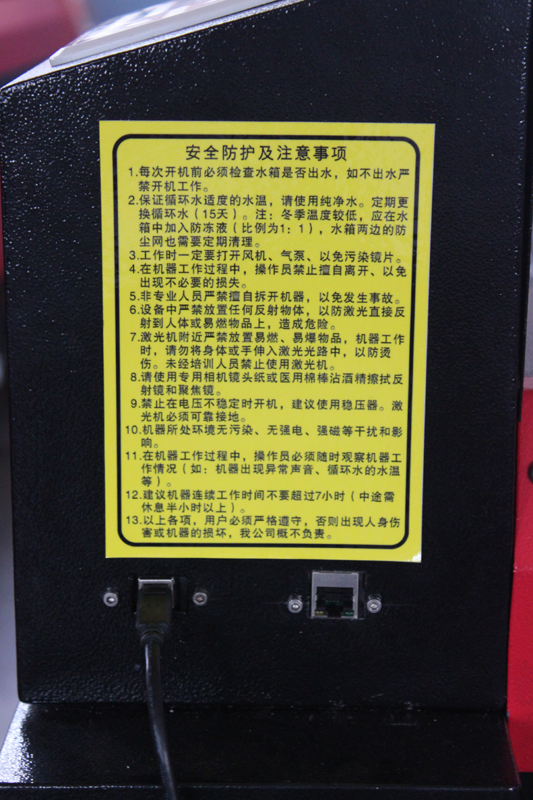

注意事項
加工幅面可定制
Customized Processing Area Available
JSDH-2030LPF 普及型裁床/Popular laser cutting machine
采用高精度8線步進電機及數字式步進驅動器,同步帶傳動,運行快速
High precision 8 linear stepping motor and digital stepping drive, synchronous belt drive, high speed
JSDH-2030LGF 高速裁床/High speed laser cutting machine
采用高速伺服電機及伺服驅動器,同步帶傳動,運行快速
High speed servo motor and servo driver, synchronous belt drive, high speed .
JSDH-2030LHP 高精度裁床/High precision laser cutting machine
采用高精度8線步進電機及數字式步進驅動器,精密齒輪齒條傳動,運行精準
High precision 8 linear stepping motor and digital stepping drive, precision gear rack drive,high precision.
JSDH-2030LGFP 高速高精度裁床/High speed and high precision laser cutting machine
采用高速伺服電機及伺服驅動器,精密齒輪齒條傳動,運行快速精準
High speed servo motor and servo driver, precision gear rack drive, high speed and high precision.
技術參數/Technical Index
激光功率 /Laser power | 60W/80W/100W/130W |
工作面積 /Operating area | 2000 mm x 3000 mm |
最大線速 /Max linear speed | 24,000 ~ 40,000 mm/min |
切割深度 /Cutting depth | ≤30 mm |
定位精度 /Resetting positioning accuracy | ±0.5 mm |
環境溫度 /Operating temperature | 0 ~ 45 ℃ |
支持格式 /Graphic supported | PLT、BMP、JPG、DXF、AI、DST等 |
工作電源 /Operating power supply | AC220V ± 5%、50Hz |
外形尺寸 /Dimension | 3500 mm x 2440 mm x 1100 mm |
特點描述/Feature Description
采用國際先進的32位高速控制系統,性能大幅度提高,平穩的S型加減速控制軟件,動作迅捷平穩,配合自動光衰補償技術使不同切割部位達到理想效果。采用中外合作技術研制的高頻勻功CO2 激光器,在使用過程中,充沛的激光功率可連續24小時均勻輸出,使每件物品加工效果始終如一
機械系統采用貼近人體工學的一體化設計,操作方便;機械部件配裝優質運動傳動系統,保證了高速運動下的高精度效果。機床級加工平臺穩定可靠,適合高強度、高精度下大批量、多批次作業要求
配置恒溫散熱冷卻系統,即使高溫季節也確保設備連續24小時工作
光學系統采用新加坡高反射及高透率鏡片,光束質量恒定細致
強大的軟件編輯功能,簡便的界面操作;手動/自動一體化操作設計,為不同加工需要,提供方便快捷的操作方式:適用不同材料切割;加工數量預設及統計功能設置,方便用戶工作量安排。具備兼容CORELDRAW、AUTOCAD、PHOTOSHOP等軟件
光強、速度自動匹配功能確保拐角切割質量,連續曲線切割功能可使曲線切割速度最高可達36米/分鐘,快速實現服裝樣片裁切,大大提高了服裝企業的生產力與競爭力
It adopts inetrnational advanced 32 bits high speed control system and stable S model acceleration and deceleration control software, The automatic attenuation compensation technology to make different cutting positions to achieve the ideal effect.
It adopts CO2 laser with high frequency uniform ,continuously work for 24 hours and to make each item to be consistent.
The machinery system has adopted intergrative design according to ergonomic principles and easy to operate, the operating system adopts Koera vertical line guiding track with smooth travel, high speed and high precision.
Equipped with constant temperature cooling system which can continuously work for 24 hours in summer season.
It adopts optical system developed in Singapore ,high reflection mirror and high penetration lens ,the quality of light beam is constant.
Capable software and interface is easy to operate, manual /automatic operation design. Set the processing quantity in advance and function of statistics. Compatible software: CORELDRAW、AUTOCAD、PHOTOSHOP etc.
Speed automatic matching function to ensure the quality of corner cutting, Continuous curve cutting function makes the curve cutting speed to reach Max. 36m per minute.
應用行業及材料/Applicable industries & material
服裝貼布繡、長短毛絨面料、皮毛、織嘜、商標切割;服裝輔料鏤花、打孔、切邊;皮革打孔、放樣、開料;有機玻璃、PVC類、紙類、木竹等切割;木竹、影雕行業雕刻。
Colth embroidery, short/long plush fabric, fur, label, trademark cutting, filter colth, cloth accessories cut, holing, cutting, sampling, tooling, organic glass, PVC, paper, wood and bamboo cutting & engraving.
