JSDH 4015GF 1000W板管一體光纖激光切割機
所屬分類:光纖激光切割機
產品品牌:江蘇大華
加工定制:可
產品產地:江蘇聯系電話:18952966888(光纖) 18913402888(裁床)
所屬分類:光纖激光切割機
產品品牌:江蘇大華
加工定制:可
產品產地:江蘇
聯系電話:18952966888(光纖) 18913402888(裁床)

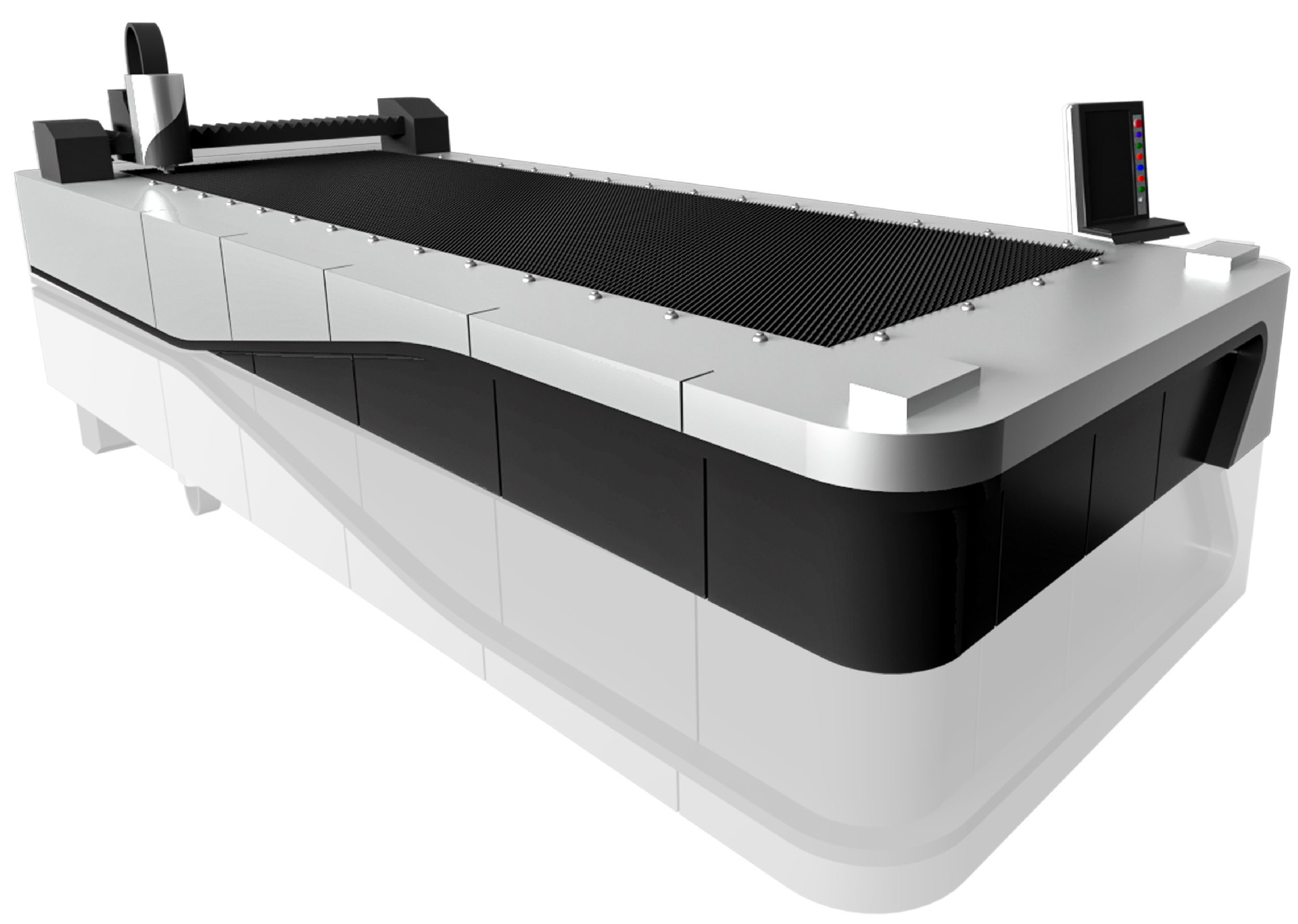

JSDH 4015GF 管板一體光纖激光切割機
JSDH-4015GF PLATE AND TUBE 2 IN 1 FIBER LASER CUTTING MACHINE
應用材料/Applicable materials:
碳鋼板(O2)0.5mm~20mm,不銹鋼(N2)0.5~8mm mm金屬板材
Thin carbon steel0.5~3mm, stainless0.5~1.5 and other kinds of metal sheets
針對金屬薄板用戶研發,價廉物美。機器每天24小時穩定工作,可配置500W~2000W激光器,適用于中端客戶。
R&D for the customers in the field of thin metal sheet ,good price and good quality .This machine can continuously work for 24 hours everyday and work stable .Laser power 500-2000W available ,suitable for normal customers
JSDH-4015GF 性能技術參數/Technical Parameters
加工幅面 4000mmX1500mm
Processing Area
正常運行速度 90m/min
Cutting Speed
加速度 0.3G
Accelerated speed
X/Y定位精度 ±0.2mm/m
X/Y Positioning Accuracy
X/Y重復定位精度 ±0.02mm
X/Y Repeated Positioning Accuracy
工作電壓 220(380)V±10% 50Hz
Power supply
激光器功率 500w-2000w
Laser power
設備總功率 <10KVA
Machine gross power
整機重量 7000KG
Whole machine weight
傳動方式 龍門齒條雙驅
Transmission Precise pinion and rack dual-drive transmitting
Ø 采用日本安川伺服電機,臺灣YYC齒輪齒條,電氣法國施耐德,氣路日本SMC。
Ø Adopts Japan Yaskawa servo motor ,Taiwan YYC gear and rack ,machine tool electrical is French Schneider ,Gas path is Japan SMC;
Ø 600℃高溫?zé)崽幚恚?4小時隨爐冷卻,德國龍門銑精加工,精密焊接,保障20年不變形。
Ø 600℃ heat treatment,24 hours cooling in the oven,Germany 8-meter milling machine processing ,Precise Co2 protection welding,ensuring 20 years’ working without deformation;
Ø 導軌安裝調試采用精密準直儀測試,精度0.01mm;
Ø Precise collimator used for guide rail assembling and debugging,precision is up to 0.01mm;
Ø 適用于高速切割
Ø Suitable for high speed cutting
