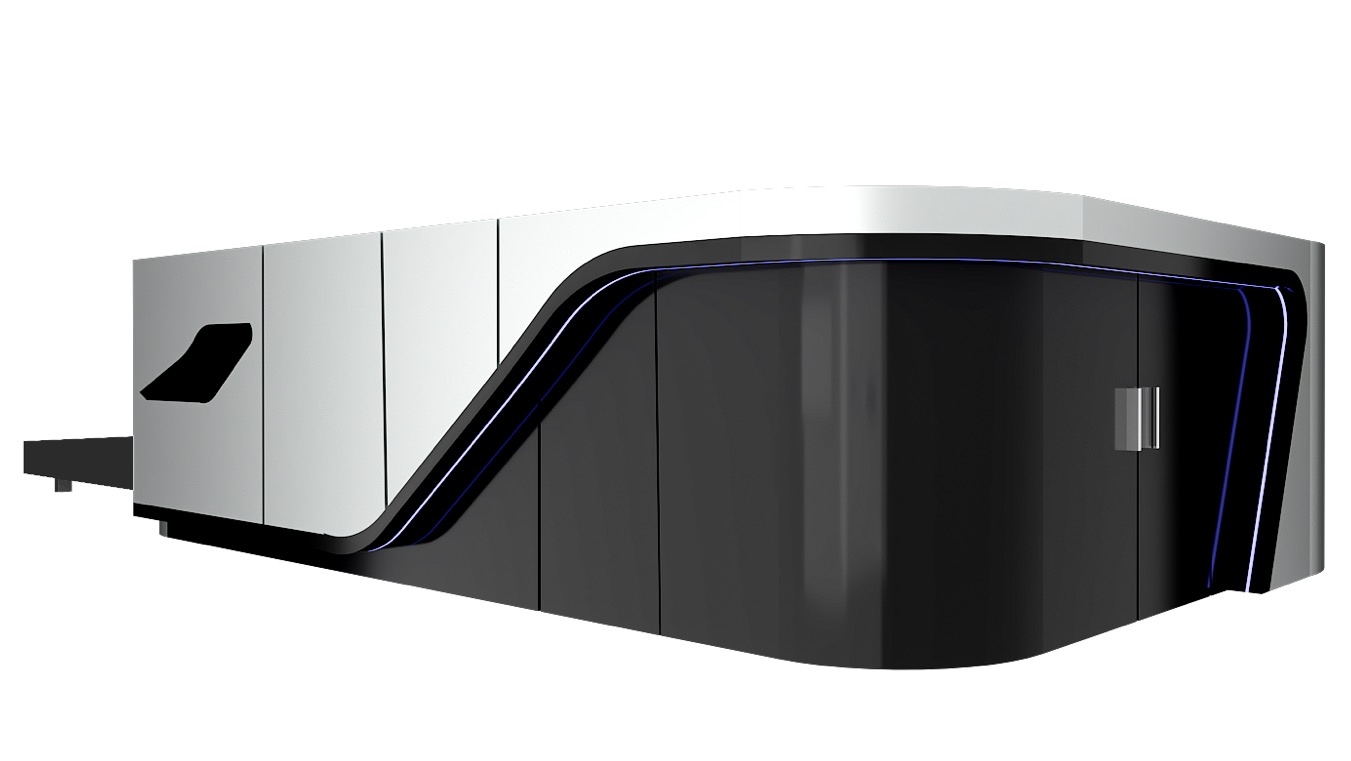

JSDH 3015GF 1000W-6000W 交換平臺光纖激光切割機
Optical Fiber Laser Cutting Machine
技術參數 /Technical Index
最大加工尺寸 /Max. processing size | 3000mm×1500mm |
有效行程 /Effective stroke | X軸:3000mm Y軸:1500mm Z軸:110mm |
定位精度 /Positioning accuracy | ±0.02mm |
重復定位精度 /Repeat positioning accuracy | ±0.02mm |
最大運行速度 /Max.operating speed | 120,000 mm/min |
最大切割厚度 /Max.cutting depth | 30mm(碳鋼) 16mm(不銹鋼) |
激光功率 /Laser power | 1000W-6000W(選配) |
激光波長 /Laser wave length | 1080nm |
冷卻方式 /Cooling system | 水冷 |
電力需求 /Power supply | 220V(380V)/50Hz |
整機功率 /Gross power | <20KVA |
整機重量 /Gross weight | 7T |
最大承載 /Max. load bearing | 800KG |
外形尺寸 /Dimension | 8.5m×2.9m×1.9m |
產品功能特性 / Feature description
龍門雙驅結構,高速運動,穩定可靠,機身底座整體加工,機床剛性好,精度高
純進口減速機,配置德國伺服電機,采用進口高精級齒輪齒條傳動,精度高,速度比普通機快三倍左右
整體鋁合金橫梁結構,兼顧剛性和質量輕的優點,響應快,動態性能好
一流品質光纖激光器,多年工業應用,壽命長,免維護,穩定可靠,機電全優設計,精選名優品牌電器配件。
機床電氣部件均采用法國施耐德,日本歐姆龍等進口原件,采用進口高精密導軌,保證機器的精度并可承受大負荷
高精密激光切割頭,進口光學鏡片,帶保護片,調焦便捷,提高切割效果;
調高器采用BCS100獨立式電容調高器,速度位置雙閉環算法控制,運行速度和精度等性能均明顯優于國內外同類產品
數控系統采用當今主流的FSCUT2000激光切割系統,配合新一代CypCut激光切割軟件,支持DXF/PLT/AI/DST等多種
格式輸入,具有強大的圖形繪制和編輯功能,切割工藝數據保存調用功能,具有斷點記憶、斷電續雕、加工時間預測等
功能,保證在意外斷電或隔天的情況下繼續加工,操作簡單易學
氣體控制部分采用日本SMC、意大利CAMOZZI、臺灣AirTAC氣動元件;由比例閥控制氣體的流量,氣流穩定;切不同
板材時,會根據工藝庫里的指令自動切換空氣、氧氣、氮氣三種氣體及氣壓,無需手動調節
機床加油潤滑系統,運行更為平穩,壽命長
可根據客戶的特殊要求,量身訂做各種尺寸和具體要求。
Portal frame double drive structure, high speed moving stably,whole body, processing and high precision.
Imported planetary reducer, Japan Yaskawa servo motor configuration, high precision gear rack drive, three times faster than
ordinary machine.
Monolithic aluminum alloy beam structure, advantages of both rigidity and light weight, fast response, good dynamic
performance.
First class quality fiber laser, many years of industrial applications, long life, maintenance free, stable and reliable, excellent
mechanical and electrical design, selection of excellent brands of electrical accessories, failure rate to a minimum.
The electrical components of machine tools are used in France Schneider, Japan OMRON and other imported original.
Imported high precision guide rail to ensure the accuracy of the machine and withstand large loads.
High precision laser cutting head, imported optical lens , with protective mirror, focusing convenient, cutting perfect.
The BCS100 Independent type capacitor is used to adjust the high, speed position double closed loop algorithm control,
operating speed and accuracy of performance are significantly better than similar products at home and abroad.
Numerical control system adopts the mainstream FSCUT2000 laser cutting system, and the latest generation of CypCut laser
cutting software, graphic supported by DXF/PLT/AI/DST …, powerful graphics grendering and editing functions, cutting
processing data save call function, breakpoint memory, power cut continued carving, processing time prediction and other
functions.
Gas control part of the use of SMC, Italy CAMOZZI, Taiwan AirTAC pneumatic components, flow of gas by proportional
valve, air flow stability.While different plate cutting, according to process library instruction automatic switchover air, oxygen,
nitrogen, and air pressure, without manual adjustment.
Machine tool lubrication system, running more stable, long life.
Speicial size of working table customized available.
適用材料及行業/Applicable material /industries
可切割各種金屬板材,主要適用于:碳鋼、不銹鋼、鍍鋅板、錳鋼、硅鋼、合金、稀有金屬等材質的快速切割
廣泛應用于:機械零件、鈑金機柜、燈飾五金、廚房電器、汽車配件、廣告字牌、鋸片、眼鏡、展示器材等各
種金屬制造加工行業。
Material: Carbon steel ,stainless steel, galvanized sheet, manganese steel, silicium steel,alloy, rare metal etc..
Industries: Machinery part, sheet-metal equipment cabinet,lighting hardware, kitchen appliance, advertising,
Saws, glasses, display material etc…
